Traditional gym machines often lock users into fixed planes of motion, forcing you to sit down and push forward or pull back along a rigid track. While effective for isolating specific muscles, this rigidity fails to replicate the dynamic, three-dimensional movement patterns required in daily life and athletics. Conversely, free weights like dumbbells and barbells offer freedom but rely solely on gravity, providing resistance only in a vertical vector. Neither approach fully captures the complexity of real-world force vectors where resistance might come from the side, an angle, or while rotating.
The solution lies in the Functional Trainer. Far more than just another piece of gym equipment, this machine represents a comprehensive solution for multi-planar resistance training. It bridges the critical gap between aesthetic isolation exercises and genuine athletic performance by allowing users to move against resistance in any direction. Whether you are rehabilitating a shoulder injury or training for explosive power, the functional trainer adapts to your biomechanics rather than forcing you to adapt to a machine.
This guide moves beyond basic definitions to provide a decision-maker’s evaluation of the equipment. We will analyze mechanical configurations—such as the crucial difference between 2:1 and 4:1 pulley ratios—assess the return on investment (ROI) for home versus commercial spaces, and identify the critical build quality markers that define a long-lasting unit. You will learn exactly what to look for to ensure your investment delivers professional-grade results for years to come.
Multi-Planar Versatility: Unlike fixed machines, functional trainers allow resistance in any direction (transverse, sagittal, frontal), mimicking real-life mechanics and sports movements.
The "2-Machine" Solution: For most home gyms, a functional trainer paired with a squat rack covers 95% of strength training needs.
Mechanical Nuance: The pulley ratio (2:1 vs. 4:1) dictates the machine's "feel" and suitability for heavy lifting versus explosive athletic work.
Space vs. Stability: Buyers must trade off between massive stand-alone units (higher stability) and space-saving wall-mounts or rack attachments.

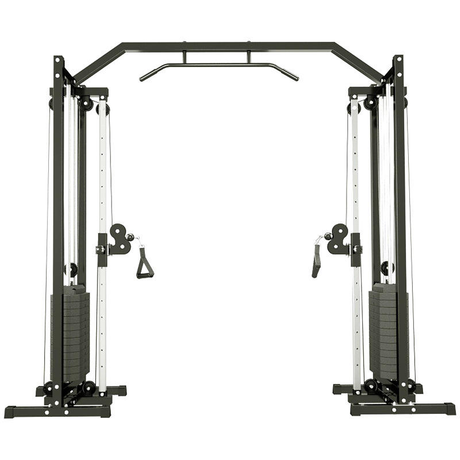

To truly evaluate this equipment, we must first understand its core architecture. A functional trainer is distinct from a standard cable crossover or a lat pulldown machine due to its specific mechanical setup. It typically features dual independent weight stacks. This independence is non-negotiable; it allows for unilateral training, enabling you to work the left and right sides of the body separately to identify and correct muscular imbalances.
The defining feature of these machines is the adjustable pulley trolleys. These mechanisms slide vertically along columns, allowing the origin of resistance to be set anywhere from floor level to above head height. Combined with a cable system, this setup provides constant tension throughout the entire range of motion. Unlike dumbbells, where the torque curve fluctuates based on gravity and lever arm angles (often becoming weightless at the top of a movement), cables maintain consistent resistance on the muscle fiber from start to finish.
The rise of the functional trainer mirrors a shift in the fitness industry from "aesthetic isolation"—typical of bodybuilding eras where the goal was simply muscle size—to "movement quality." While isolation is useful, life and sport require muscles to fire in coordinated chains.
We use functional trainers to perform compound movements that recruit core stabilizers. For example, a squat-to-row or a lunge with a torso rotation forces the body to stabilize externally while producing force. This integration creates "functional strength" that transfers directly to carrying groceries, swinging a golf club, or preventing falls.
Physically, these units often resemble a cage. This open architecture is intentional. It creates a dedicated workspace where the user can step inside or stand in front of the frame. By utilizing this open space, you can perform dynamic movements such as walking lunges or woodchoppers without being impeded by a seat or a chest pad. This footprint transforms a few square feet of floor space into a complete gymnasium.
Selecting the correct functional trainer requires analyzing your available space and budget. There are three primary form factors dominating the market today, each with distinct advantages.
These are the heavy-duty beasts often found in commercial gyms. They are fully self-contained with a wide base.
Pros: They offer maximum stability. You rarely need to bolt them down because the weight of the dual stacks anchors the unit. They often include built-in pull-up stations (multi-grip) and integrated storage for handles and accessories.
Cons: The footprint is significant. They dominate a room and come with a higher cost of entry, often including shipping freight charges.
If you already own a power rack, manufacturers often sell cable attachments that bolt onto the existing uprights.
Pros: This approach utilizes your existing squat rack structure, significantly reducing cost and floor space usage. It turns a static rack into a dynamic station.
Cons: It can crowd the lifting area. If you are training with a partner, one person cannot use the cables while the other squats inside the rack. Installation also strictly depends on brand compatibility.
Innovated by brands like PRx, these units are designed for garages where a car must be parked at night.
Pros: Ideal for multi-use spaces. When not in use, they extend only inches from the wall.
Cons: They require rigorous structural mounting into studs or masonry. Generally, they offer lower weight capacities compared to freestanding units and may lack the rigidity of a full frame.
| Feature | Selectorized (Weight Stack) | Plate-Loaded |
|---|---|---|
| Adjustment Speed | Instant (move a pin). Ideal for drop sets and circuits. | Slow. Requires manually loading/unloading iron plates. |
| Resistance Profile | Consistent and balanced friction. | Can have higher friction; resistance varies slightly by plate brand. |
| Cost | Higher upfront cost (includes weights). | Lower upfront cost (utilizes your existing plates). |
| Safety | High. No loose plates to drop on feet. | Moderate. Requires care when loading heavy plates. |
Not all machines are created equal. When reviewing specifications, look beyond the glossy photos and examine the mechanical engineering.
The pulley ratio describes the mechanical advantage of the machine. This is the most critical "feel" factor.
2:1 Ratio: Moving the handle 1 foot lifts the weight stack 0.5 feet. If you select 100lbs on the stack, you feel 50lbs of effective resistance. This is better for those who prioritize a "heavy" feel, hypertrophy, and standard strength training, as the cable length is usually shorter but the resistance feels more substantial.
4:1 Ratio: Moving the handle 1 foot lifts the stack only 0.25 feet. Selecting 100lbs results in 25lbs of felt resistance. While this sounds light, it allows for incredible cable travel distance and very low starting inertia. This is superior for explosive velocity training (like punching or throwing motions), rehabilitation, and taller athletes who need maximum cable extension without bottoming out the stack.
Durability lies in the components you cannot see from a distance. Inspect the cables first; you should look for aircraft-grade cables (often mil-spec) to ensure safety under high tension. Snapped cables are the most common failure point in cheap units.
Next, examine the guide rods. High-quality units use solid steel chrome-plated or stainless steel rods. The smoothness of the trolley travel determines the user experience; cheap hollow rods can warp or create friction "drag." When evaluating a Functional Trainer manufacturer, prioritize those who transparently publish their steel gauge specifications (11-gauge is the commercial standard) and offer clear warranty terms on moving parts.
For general bodybuilding, big jumps in weight are fine. However, for functional training and rehab, precision is key. Look for machines that offer micro-adjustments or 5lb (approx 2.5kg) increments. This is vital for small muscle groups like the rotator cuff, where a 10lb jump might be too severe. Furthermore, verify the "Dual Stack" necessity. Single-stack cable machines (often cheap home gym towers) fail to support true functional symmetry because you cannot pull two cables independently with equal resistance curves.
For home gym owners and facility managers, the cost of a high-end functional trainer—often ranging from $1,500 to over $3,000—can cause sticker shock. However, analyzing the Total Cost of Ownership (TCO) reveals a different picture.
Contrast the upfront cost against a monthly gym membership. A quality functional trainer has a lifespan of 15 to 20 years with minimal maintenance. If a unit costs $2,500 and lasts 15 years, the amortized cost is roughly $13.88 per month. This is significantly cheaper than any commercial gym membership, and the equipment retains a high resale value compared to cardio machines or budget benches.
While the machine physically occupies a large footprint, it acts as a consolidation tool. A single functional trainer effectively replaces a lat pulldown, low row, pec fly machine, bicep curl station, and tricep pressdown unit.
However, when planning your floor layout, you must consider the Working Envelope. A common mistake is measuring only the machine's base dimensions. Users need 3 to 4 feet of open space in front of the machine to perform lunges, chest flys, and overhead presses. Without this clearance, the machine's utility is severely compromised.
From a longevity perspective, the functional trainer is indispensable. It allows users to load muscles heavily without axially loading the spine. Unlike a heavy barbell back squat which compresses the vertebrae, a belt squat or cable squat on a functional trainer places the load on the hips and legs. This makes it essential for injury management and older trainees looking to maintain strength without joint pain.
Before purchasing, be aware of the logistical challenges involved in owning this equipment.
Do not underestimate the assembly process. Unlike a simple bench, a functional trainer involves complex cable routing through multiple pulleys. If a cable is routed incorrectly (e.g., twisted or over the wrong bolt), the machine will not function, and the cable may strip. Factor in the cost of professional installation or prepare for 4 to 6 hours of careful DIY labor.
To keep the "gliding" feel, the guide rods require regular cleaning and lubrication. We recommend using a silicone spray lubricant rather than oil-based products, which attract dust and grit. Additionally, cables stretch over time. You will need to periodically adjust the cable tension nuts at the top of the weight stack to prevent the stack from "floating" or the handle from drooping.
Standard functional trainers are tall, often reaching 80 to 90 inches. If you are placing this in a basement or garage, measure your ceiling height carefully. Remember that you need clearance not just for the machine frame, but for your head if performing pull-ups on the integrated bar. A 90-inch machine in a 92-inch room leaves very little room for assembly or pull-ups.
The functional trainer is arguably the most versatile piece of resistance equipment available, second only to the barbell in its importance for a complete strength setup. It offers a unique blend of safety, versatility, and constant tension that free weights cannot replicate. For trainees focused on athletic performance, pain-free movement, or achieving maximum exercise variety within a compact footprint, the functional trainer acts as the "glue" that connects heavy lifting to real-world movement patterns.
When making your decision, look past the price tag and evaluate the mechanics. Prioritize dual independent stacks and ensure you select the correct pulley ratio—2:1 for pure strength or 4:1 for dynamic sports training—for your specific goals. By investing in the right form factor now, you secure a training tool that will evolve with your fitness journey for decades.
A: A Cable Crossover is typically much wider and designed primarily for chest flys, often taking up huge floor space. A Functional Trainer is more compact, has adjustable pulley heights for a full range of vertical exercises, and is designed for a wider variety of movements beyond just chest work.
A: 2:1 is better if you want to move heavy weight for muscle building (you feel 50lbs when you select 100lbs). 4:1 is better for functional sports training and rehab because the cable travels smoother and longer, allowing for explosive movements (you feel 25lbs when you select 100lbs).
A: Most heavy-duty stand-alone units do not require bolting due to their wide base and heavy weight stacks. However, wall-mounted units and some lighter rack attachments absolutely require secure structural mounting for safety.
A: Yes. Through constant tension and progressive overload, you can build significant muscle. However, for maximum raw strength (Powerlifting), it is best used as a companion to a barbell and squat rack.
